Graph augmentation

for one graph G, if:

  • G is too sparce => MP(message-passing) not efficient
  • G is too dense => MP costly
  • G is too large => GPU memory not enough

then it is unlikely to use the computational graph as the raw input. $G_{raw}\ne G_{computational}$

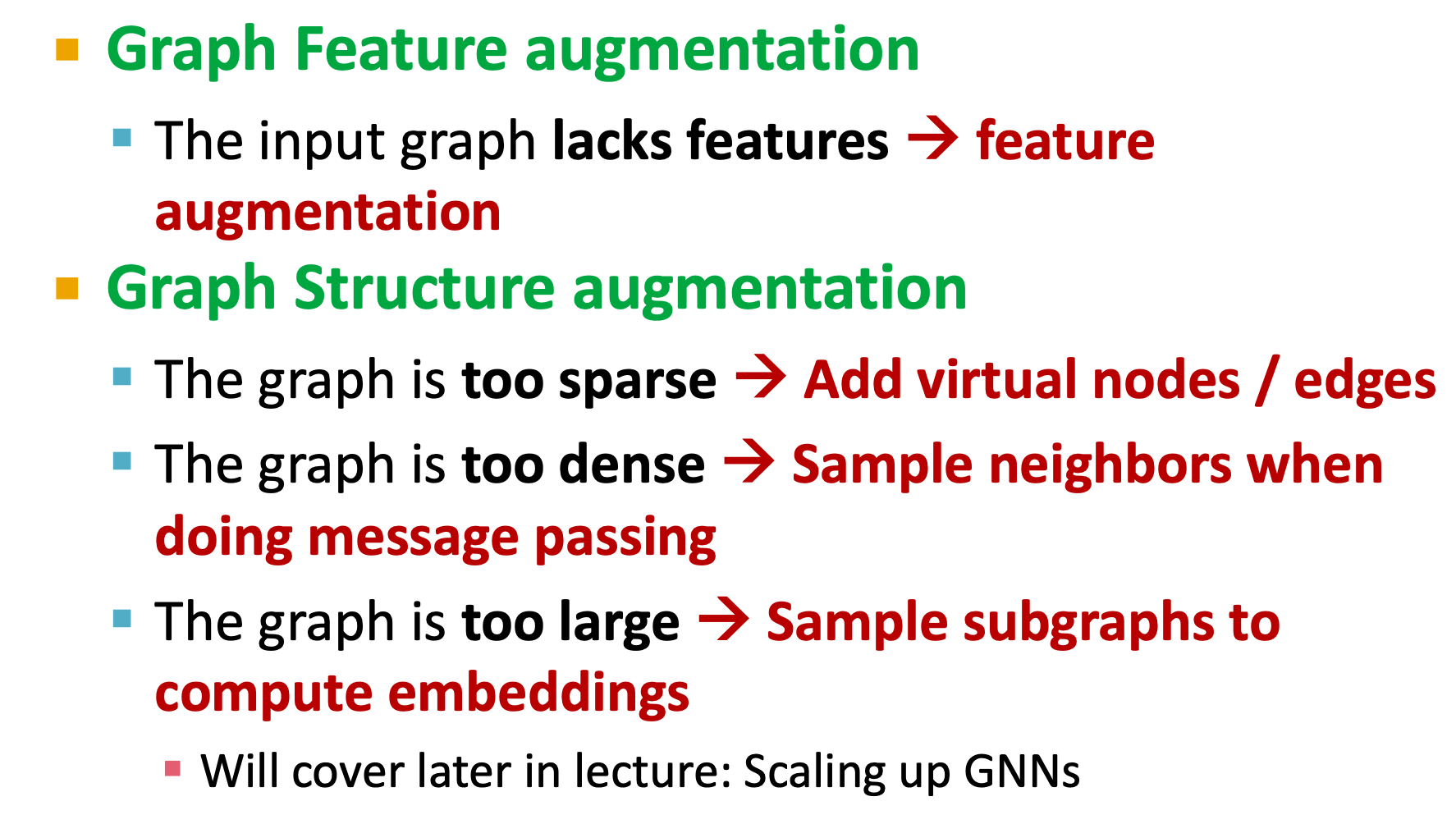

Here are some methods to do Graph Augmentation:

image-20231022164424785

feature augmentation

lake feature

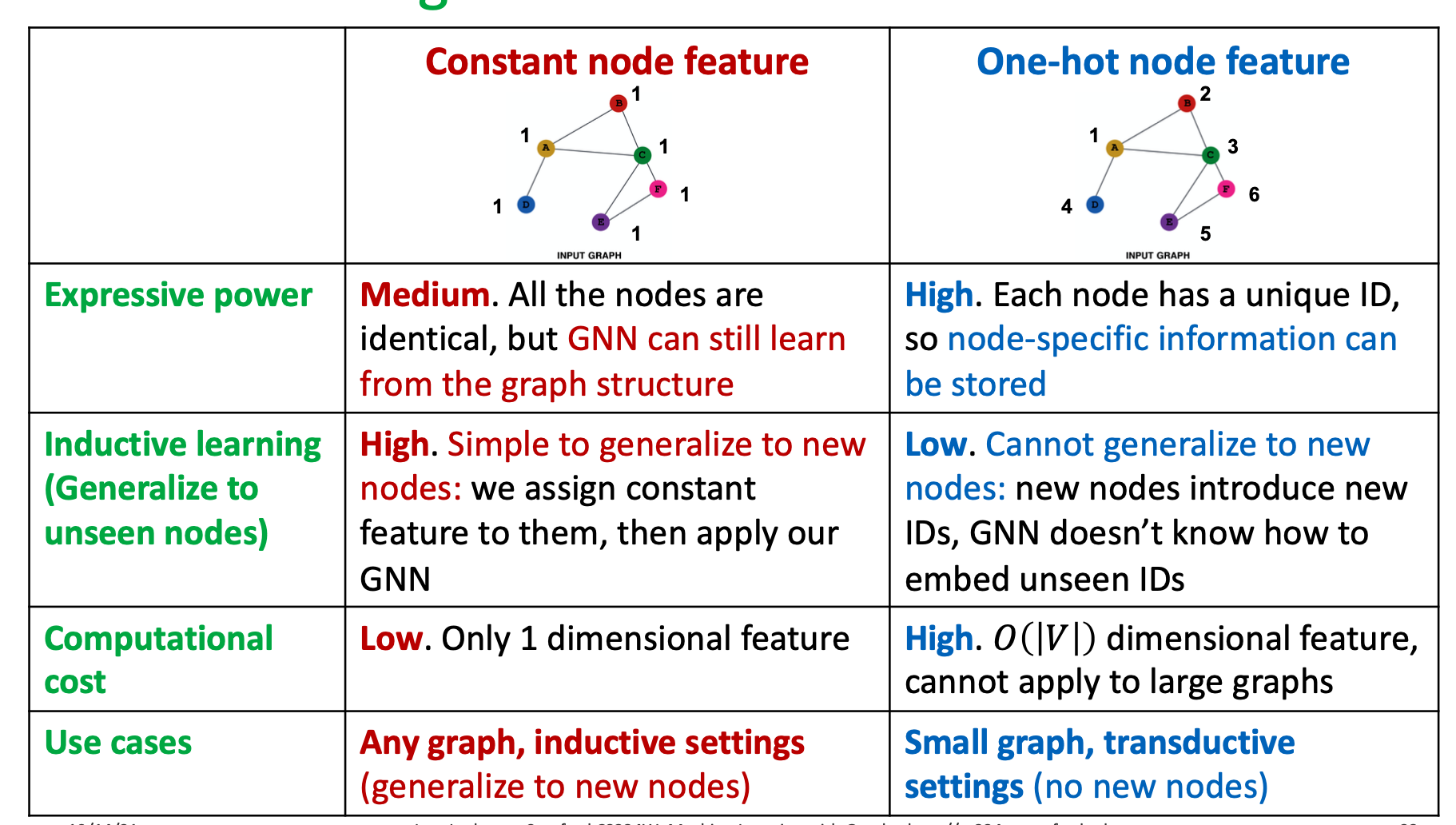

if we only have adj. matrix, the simple methods are:

  • assign constant value to nodes(value 1)
  • Assign unique IDs to nodes(one-hot encoding)

image-20231022164848622

hard to learn GNNs struct

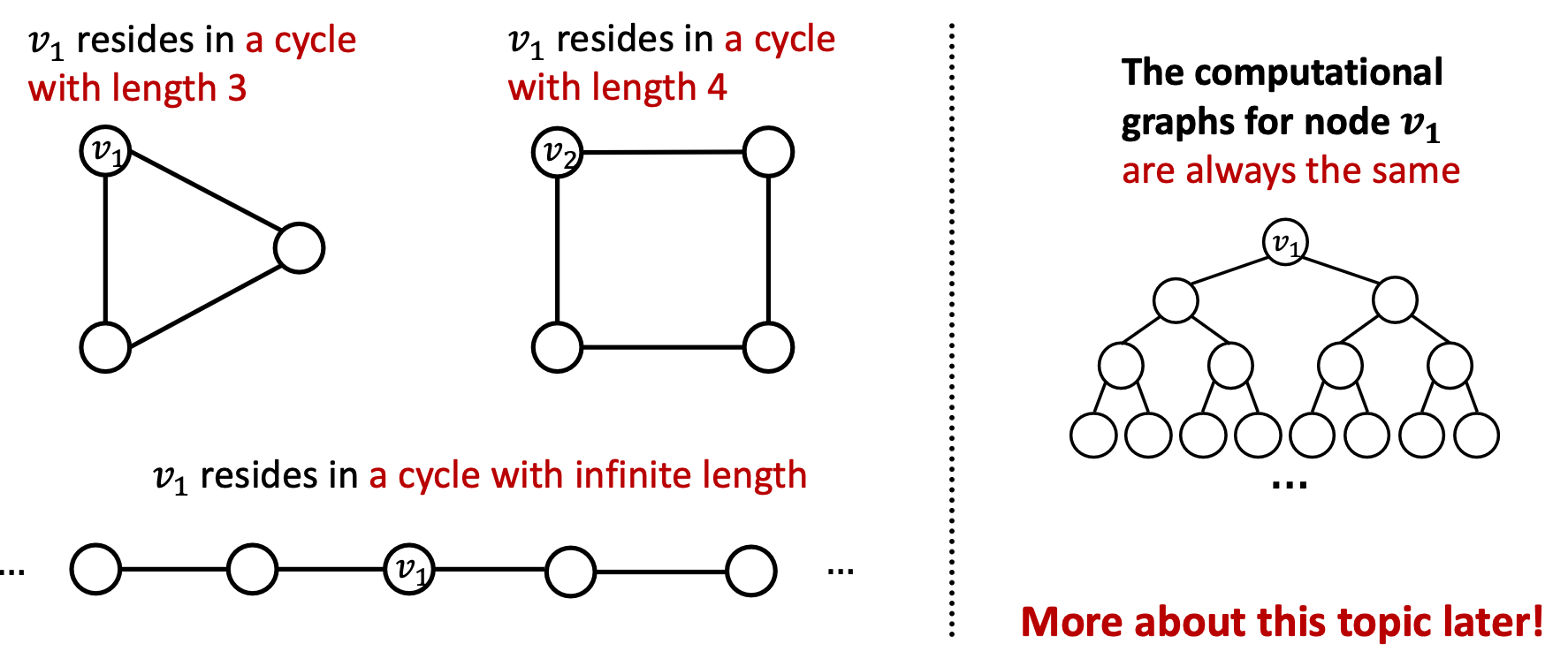

for example, the GNN can’t capture the cycle length of node v:

image-20231022165312463

This means: use the graph struct as computational graph is not enough. Nodes cannot learn the graph certain struct.

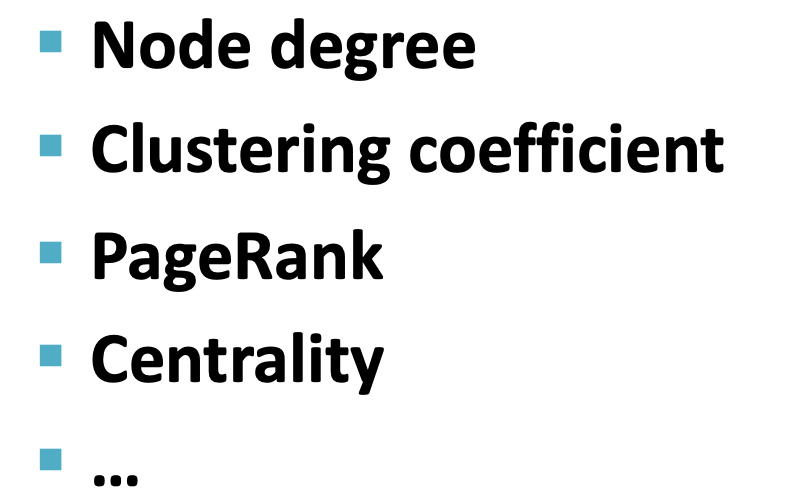

the solution is: add more network struct frature to node.

image-20231022165503259

these can be seen in ch2 or 3.

struct augmentation

add virtual edges

common approach: use $\mathcal{A}+\mathcal{A}^2$ instead $\mathcal{A}$ as computational graph.

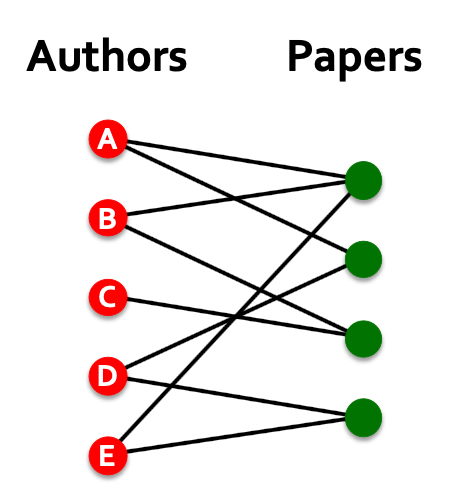

for example, in bipartite graphs:

image-20231022165905886

if use $\mathcal{A}+\mathcal{A} ^2$, the 2-hop nodes will be connected, which means we can get a co-authors-paper network or co-paper- author network.

add virtual ndoes

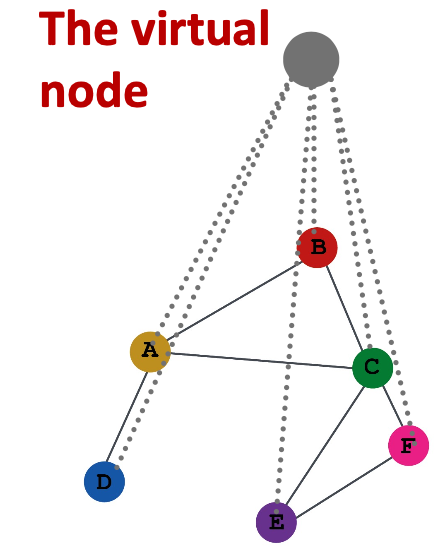

common approach: add a vitual node than connects to all nodes.

if the graph is too sparse, and 2 node distance 10-hops, then the virtual node can improve the message passing.

image-20231022170418205

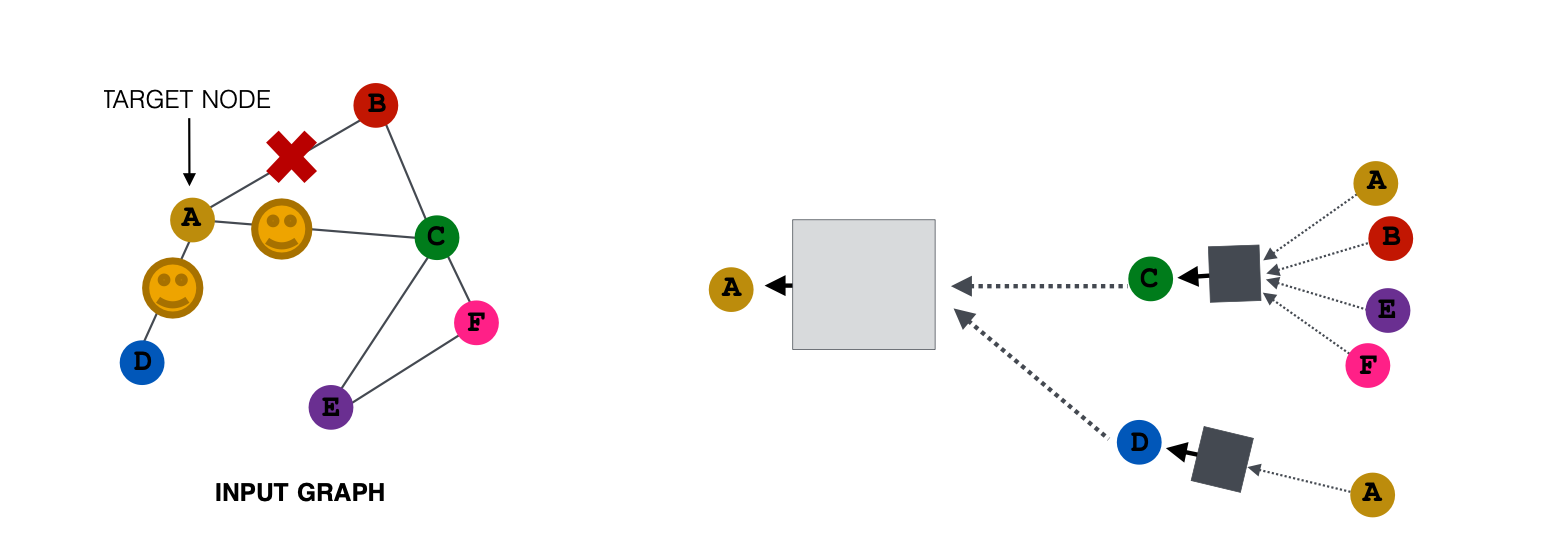

node neighbor sample

if a node’s degree is too large($10^5 degrees$), then we can sample the most important 1000 or 10000 nodes to converge. And in next epoch, we randomly sample again to increase the robust of model.

image-20231022170715701
